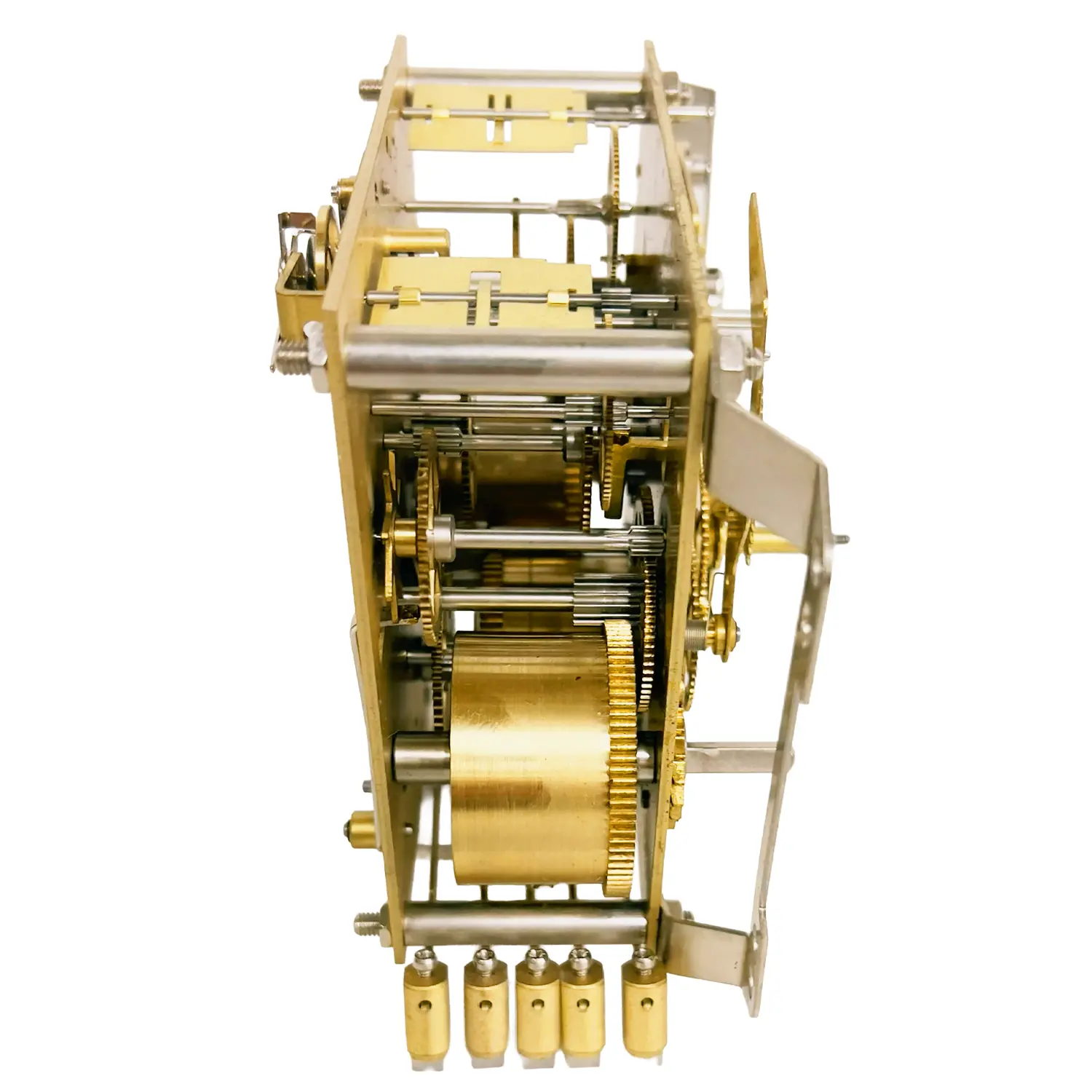

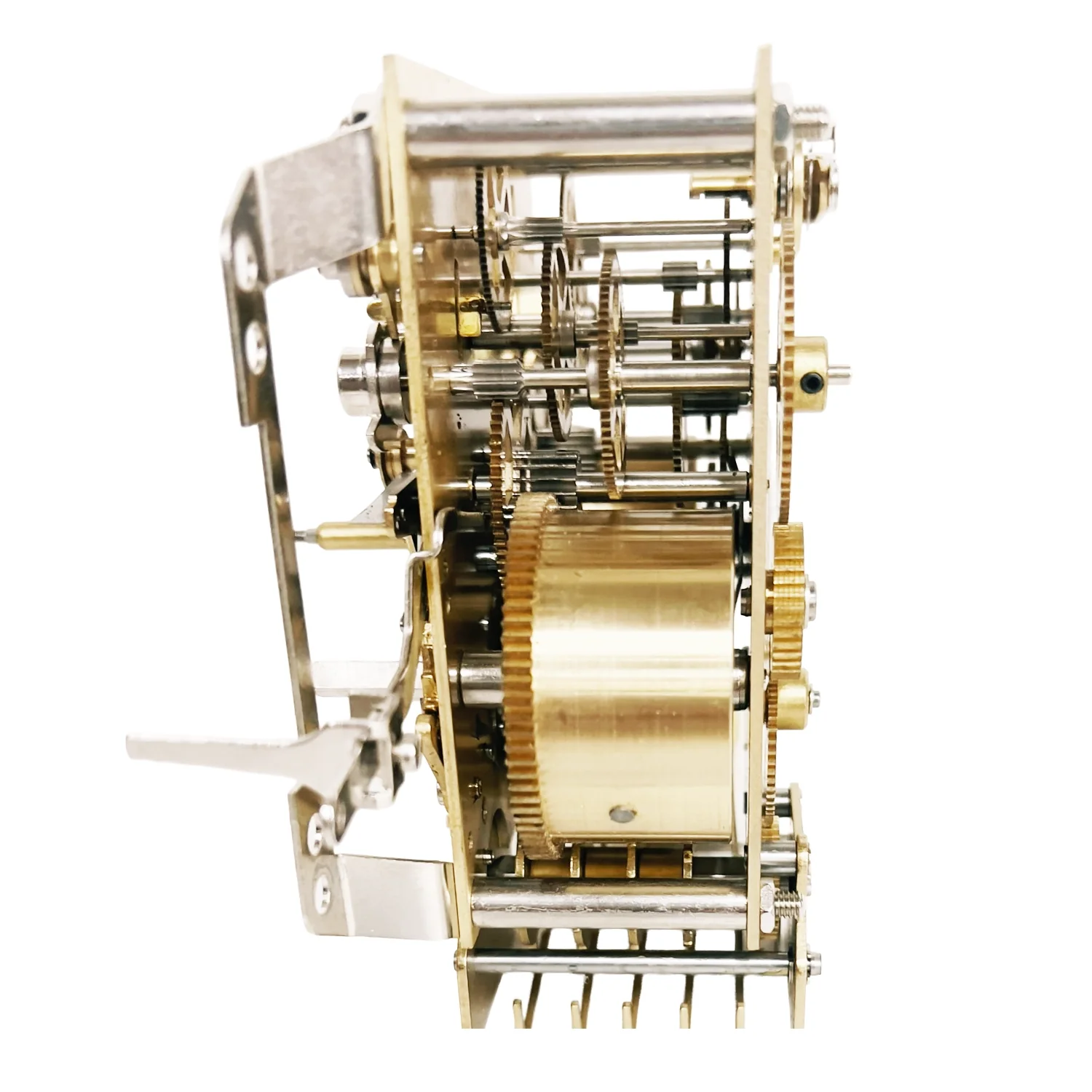

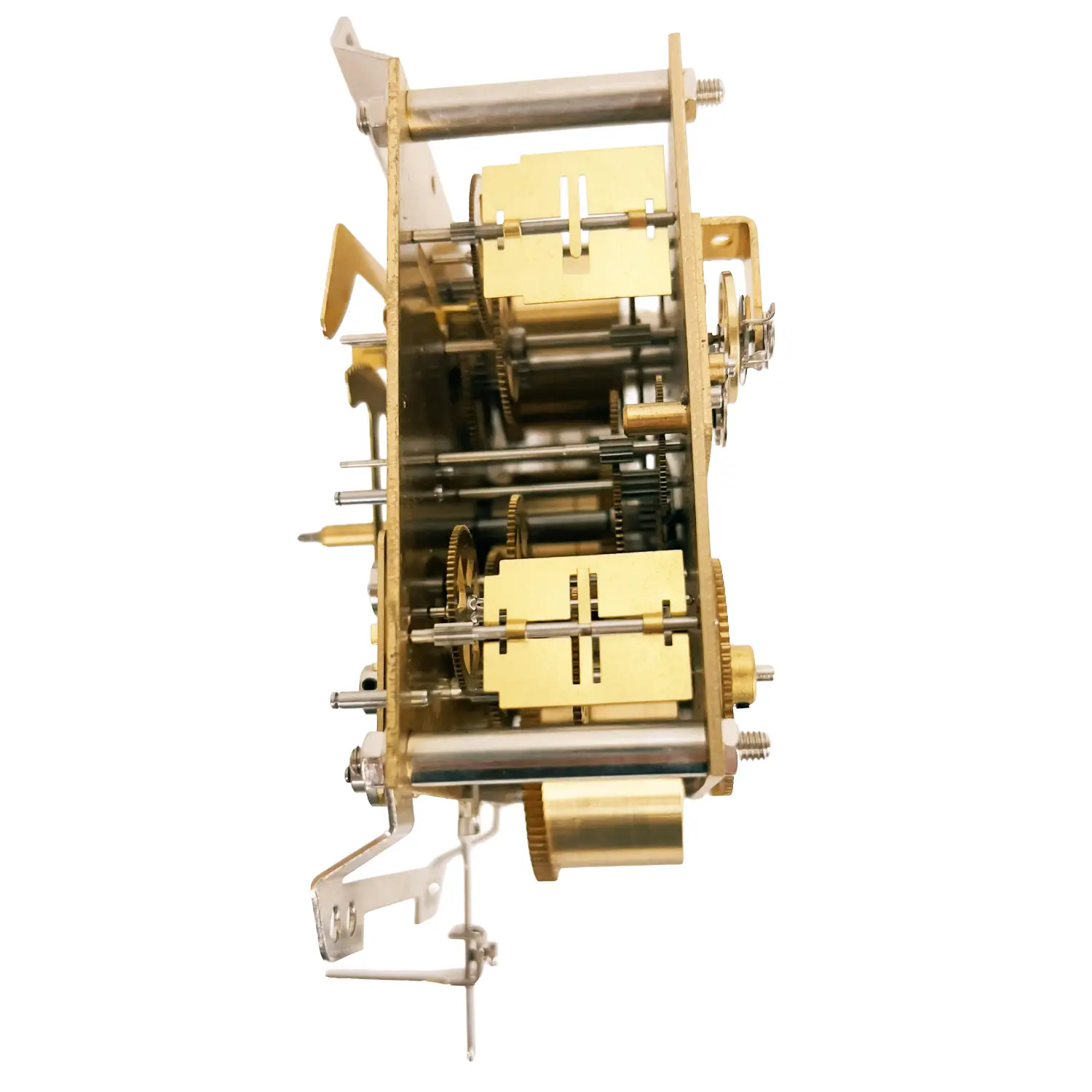

Key Wound Movement | Kieninger AEL01 | Auto Shut Off | 354648

German-made Kieninger AEL01 mechanical movement. Precision 8-day, spring-driven unit designed for wall and mantel clocks.



• Movement Type: 8-day spring-driven mechanical movement
• Escapement: Platform balance wheel escapement (no pendulum required)
• Chime: 4/4 Westminster quarter-hour chime with hour strike
• Hammer Configuration: 5 rear-mounted hammers (for 5-rod chime block)

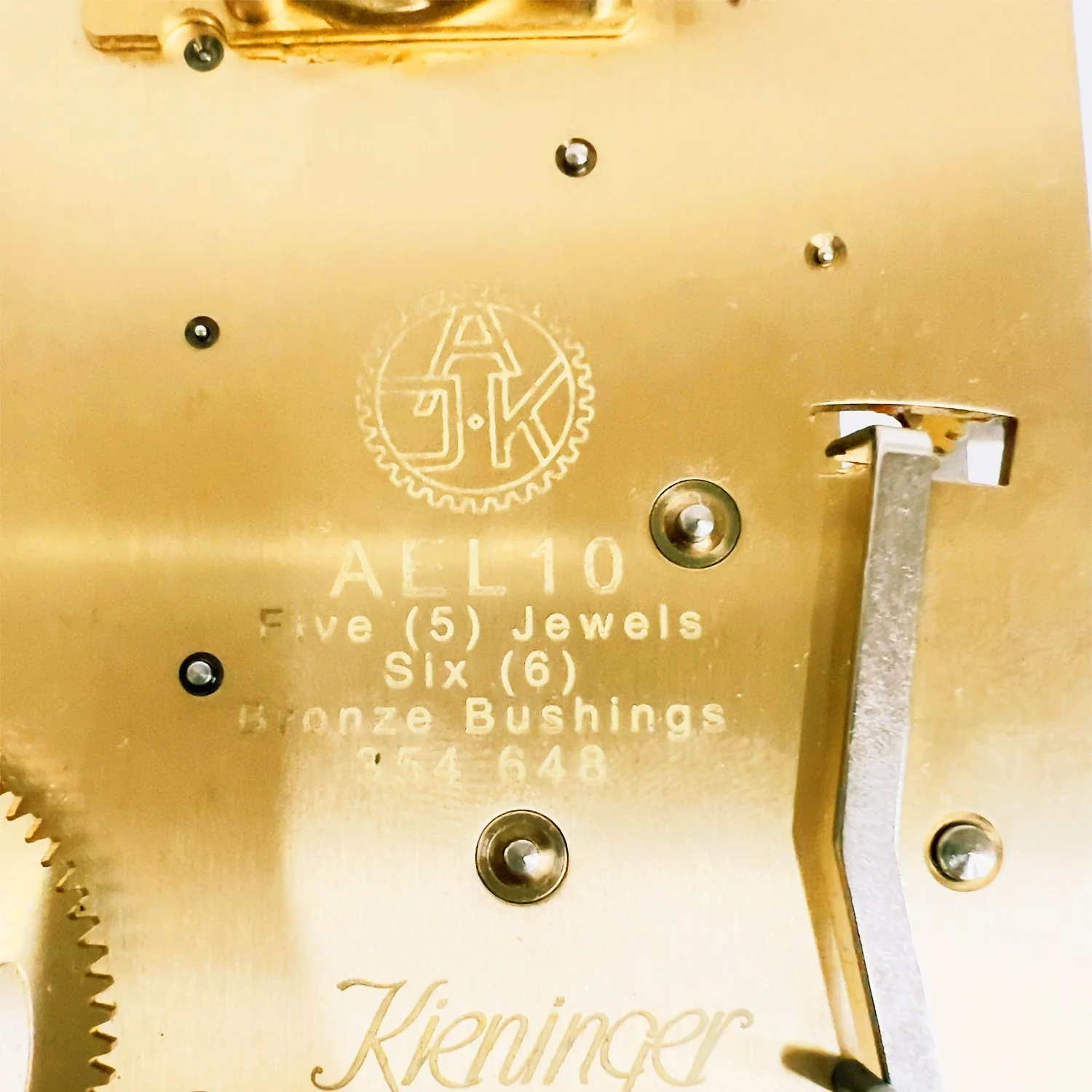

• Jewels: Five (5) jewels
• Bushings: Six (6) bronze bushings
• Center Shaft Length: 31.8 mm (plate to hand nut thread)
• Plate Size: Approx. 100 × 104 mm
• Features: Front winding; heavy brass plates; plug-in mainspring barrel design
• Auto Night Shut-Off: Yes
• Pair with: Howard Miller chime block part #35709, 357094,357099
