Key Wound Movement | Kieninger AEL03 | 354595

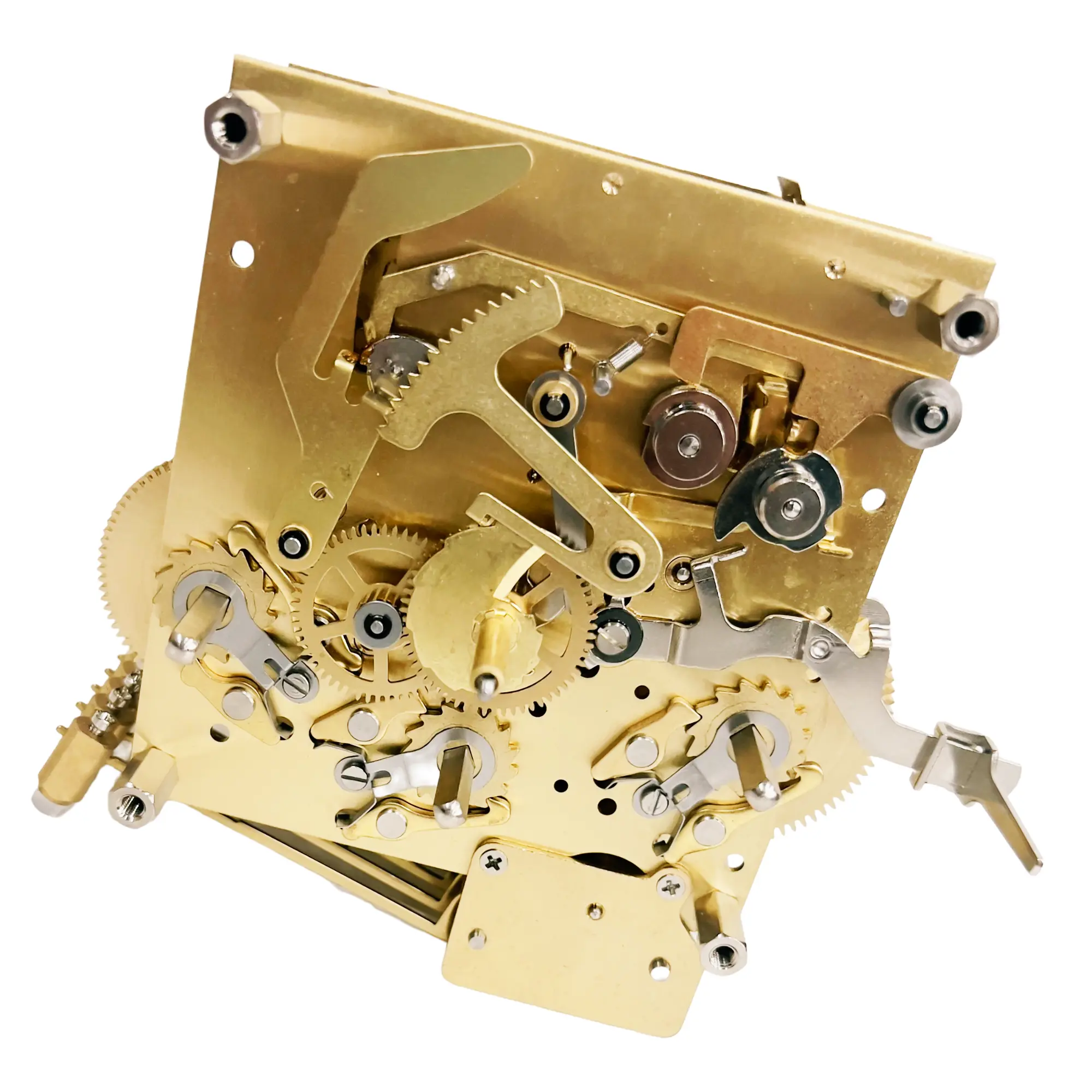

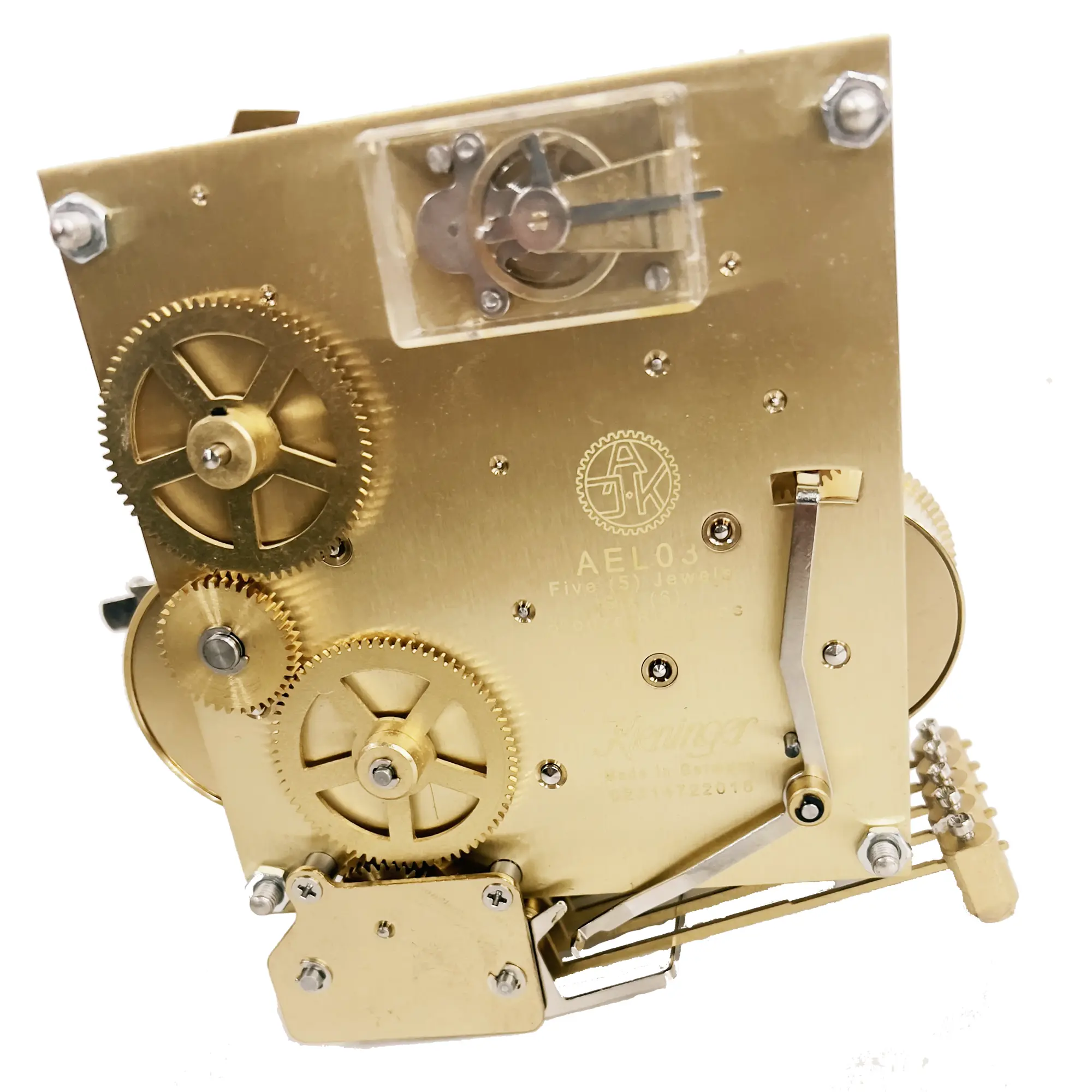

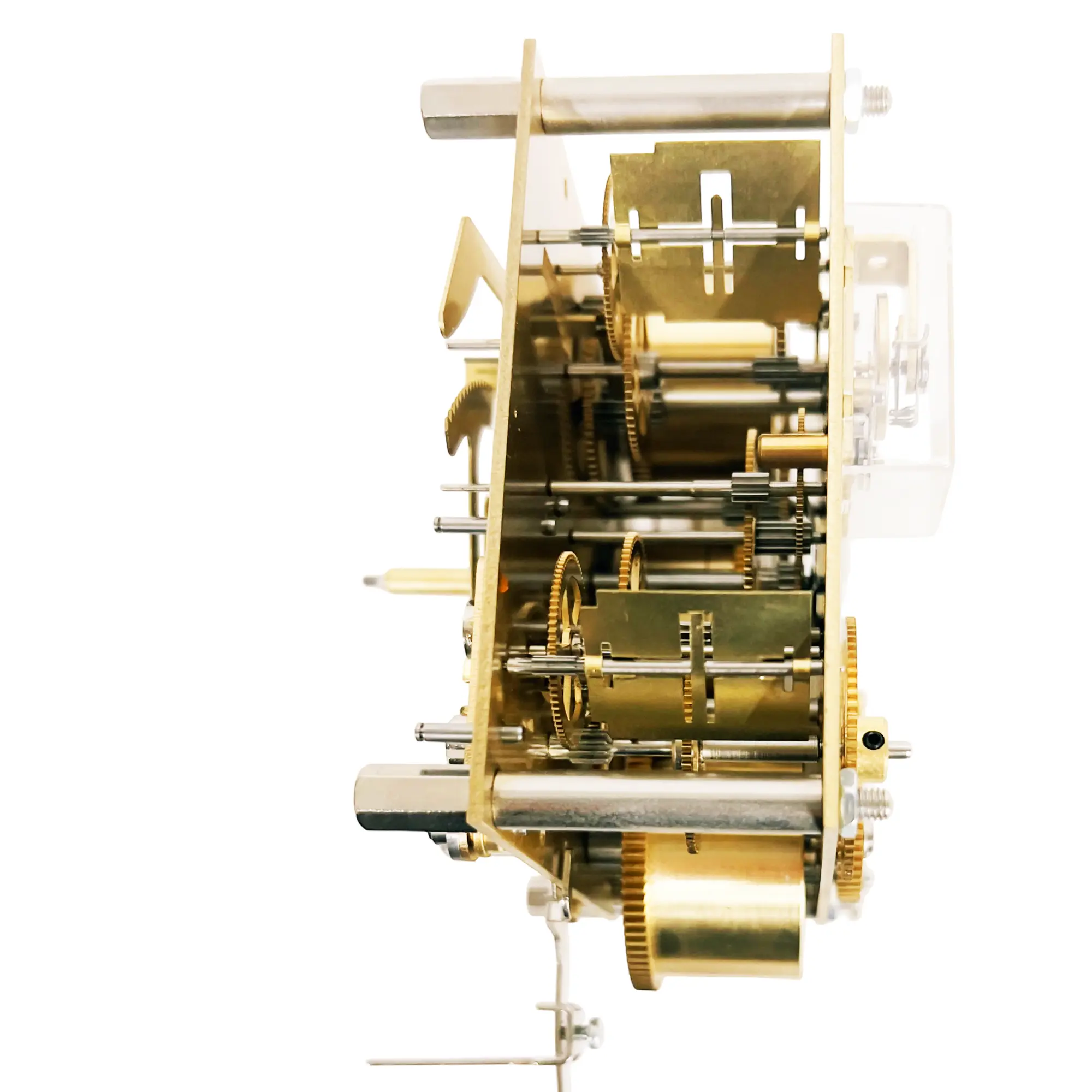

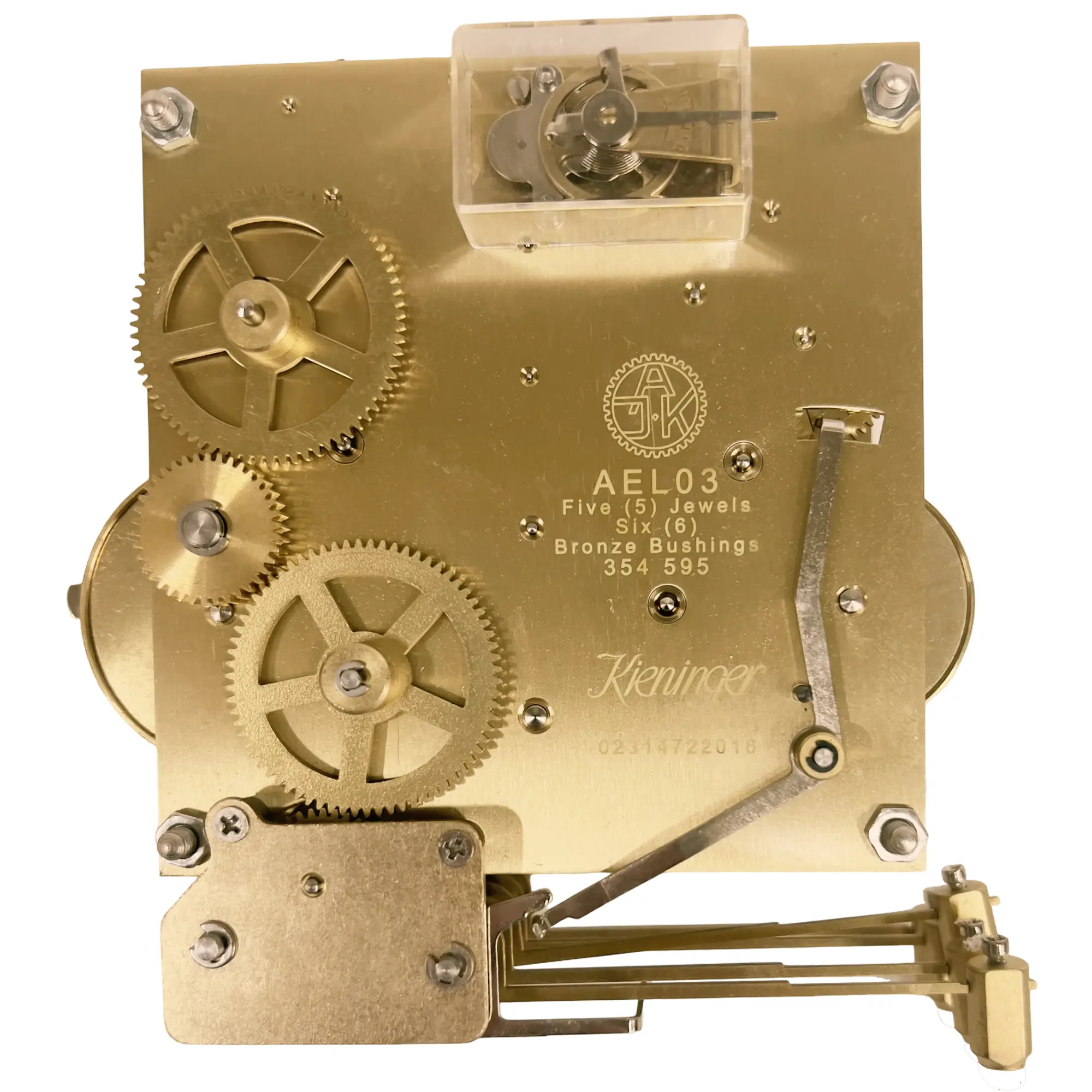

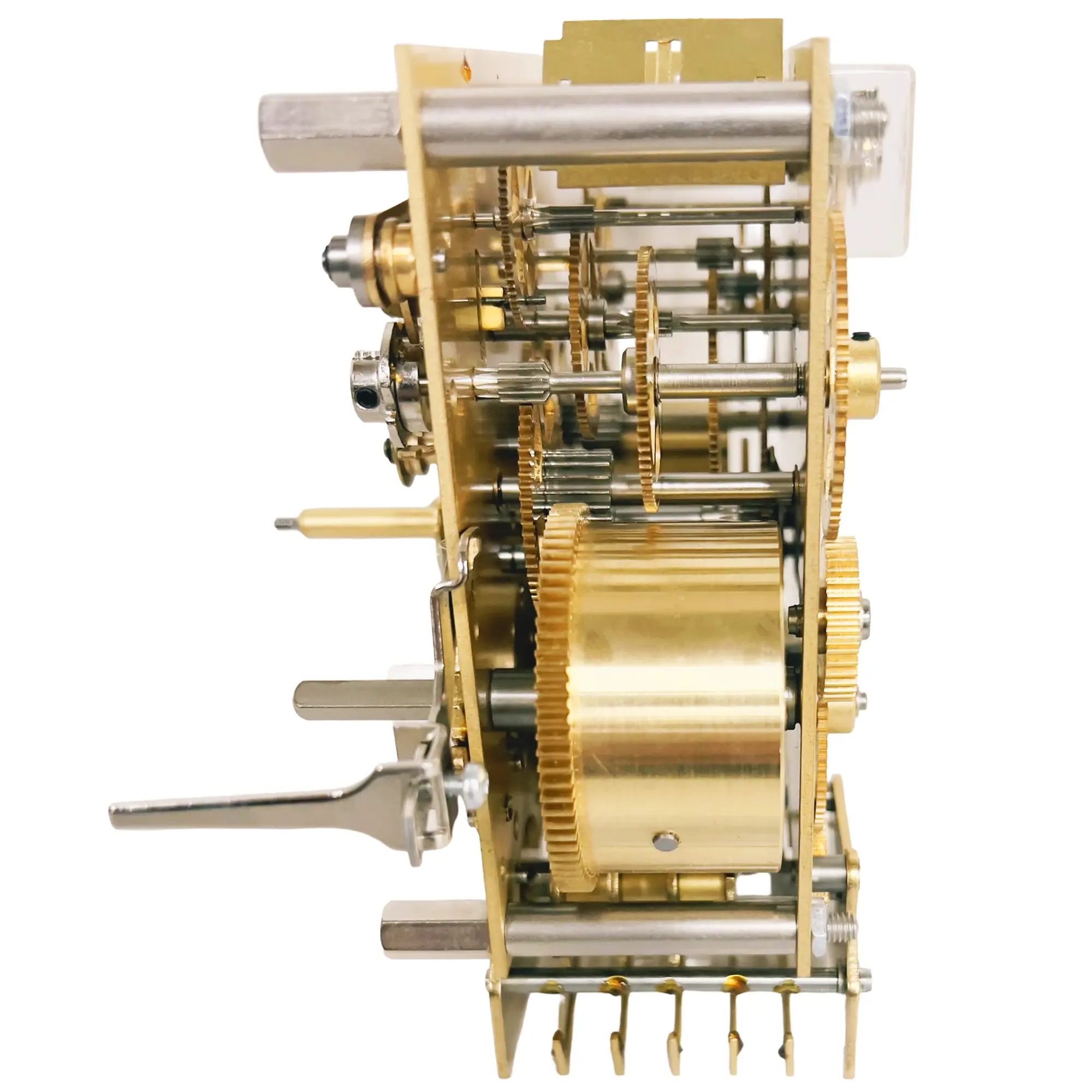

German-made Kieninger AEL03 mechanical movement. Precision 8-day, spring-driven unit featuring 1/4-hour Westminster chime on a 5-rod gong.



• Movement Type: 8-day spring-driven mechanical movement
• Escapement: Platform balance wheel escapement (no pendulum required)
• Chime: 4/4 Westminster chime on 5-rod gong (rear mounted / underbeater configuration)

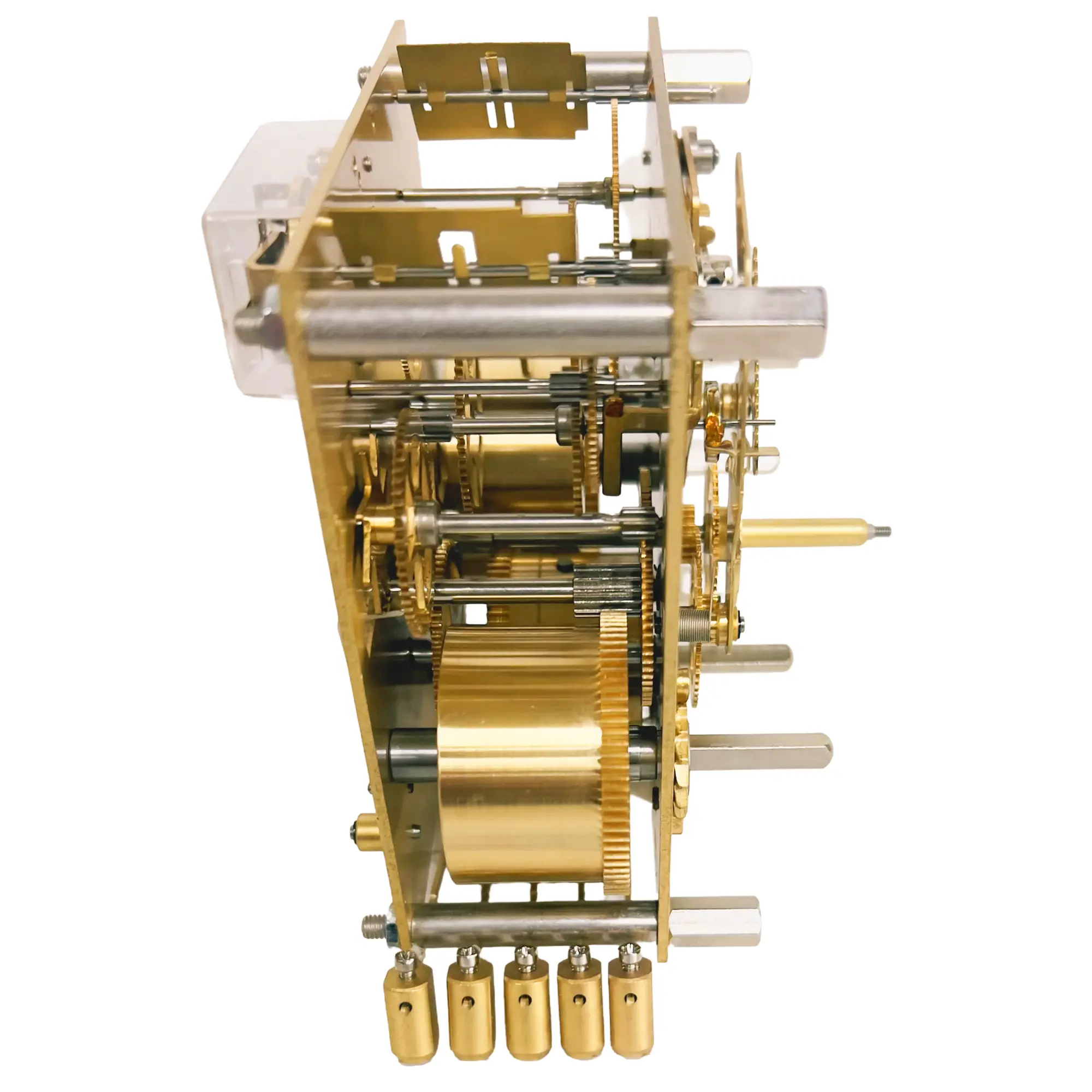

• Hammer Configuration: 5 rear-mounted hammers

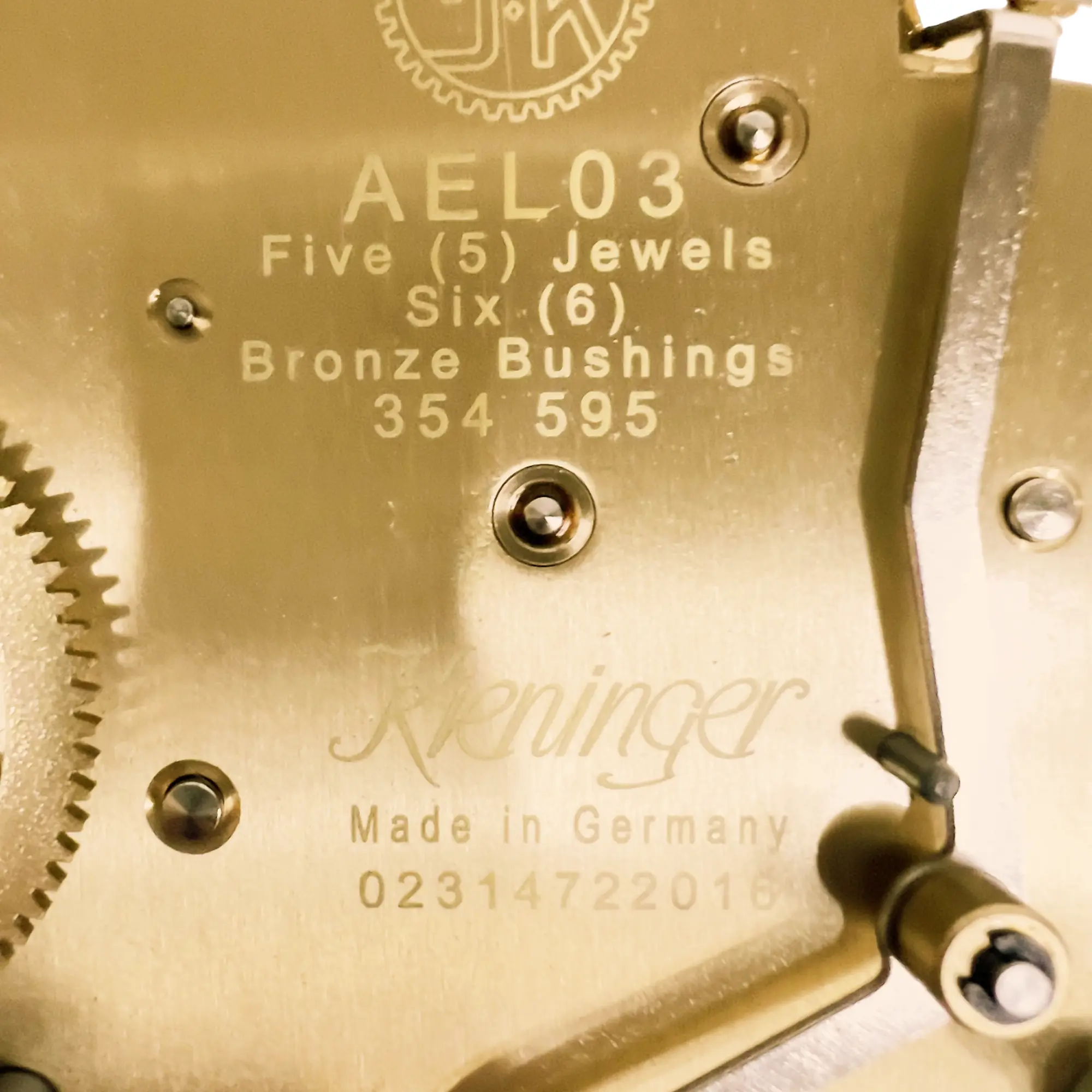

• Jewels: Five (5) jewels
• Bushings: Six (6) bronze bushings
• Features: Front winding; automatic night shut-off; heavy brass plates; plug-in mainspring barrel design
• Center Shaft Length: Approx. 35.8 mm (plate to hand nut thread)
• Plate Size: Approx. 100 × 104 mm
• Plate Thickness: Approx. 1.7 mm per plate
• Pair with: Howard Miller chime block part # 357093, 357094, 357099
